Nu-Bolt Quick Order

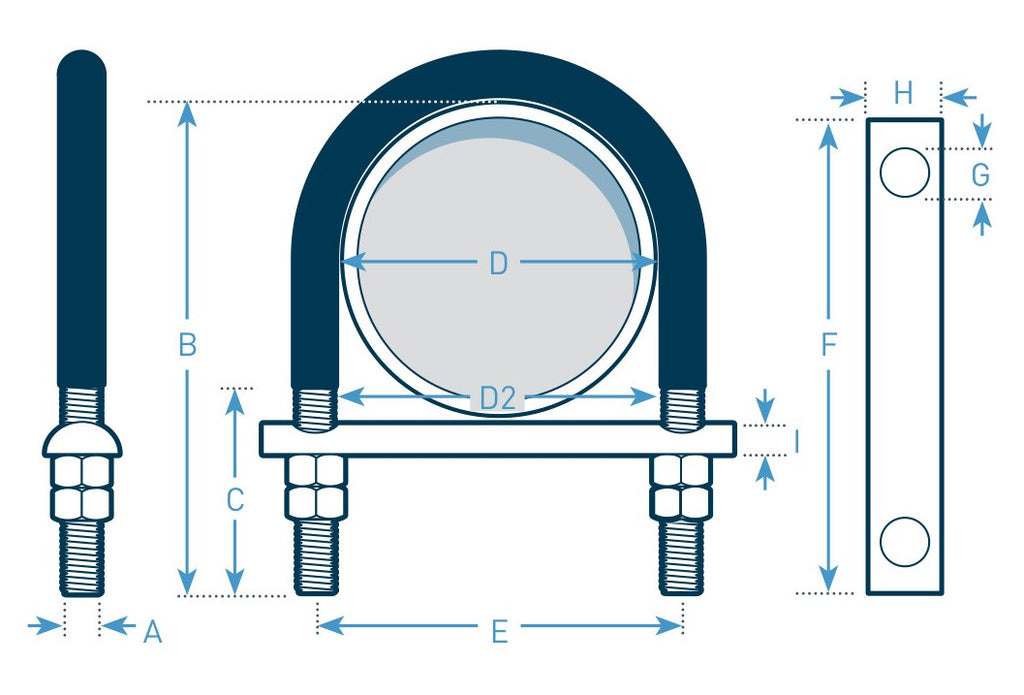

| A | B | C | D | D2 | E | F | G | H | I | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Item | Nominal Pipe Size | Bolt Diameter | U-Bolt Height | Thread Length | Inside Gap | Inside Gap w/o Polyshrink | Leg Center | I-Rod Length | I-Rod Hole Diameter | I-Rod Width | I-Rod Height | Quantity | Price |
| NUB0045 | 1/2" | 1/4" | 3 1/4" | 2 3/8" | 13/16" | 15/16" | 1 3/16" | 2 1/2" | 3/8" | 3/4" | 5/16" |
|
$9.49
|
| NUB0046 | 1/2" | 3/8" | 3 1/4" | 2 3/8" | 1" | 1 1/8" | 1 3/8" | 2 11/16" | 3/8" | 3/4" | 5/16" |
|
$11.47
|
| NUB0071 | 3/4" | 1/4" | 3 5/16" | 2 3/8" | 1" | 1 1/8" | 1 3/8" | 3" | 3/8" | 3/4" | 5/16" |
|
$9.49
|
| NUB0074 | 3/4" | 3/8" | 3 5/16" | 2 3/8" | 1" | 1 1/8" | 1 1/2" | 3" | 1/2" | 1" | 7/16" |
|
$10.86
|
| NUB0047 | 1" | 1/4" | 3 7/16" | 2 3/8" | 1 1/4" | 1 3/8" | 1 5/8" | 3" | 3/8" | 3/4" | 5/16" |
|
$9.67
|
| NUB0001 | 1" | 3/8" | 3 7/16" | 2 3/8" | 1 1/4" | 1 3/8" | 1 3/4" | 3" | 1/2" | 1" | 7/16" |
|
$10.95
|
| NUB0013 | 1 1/4" | 3/8" | 3 3/4" | 2 1/2" | 1 9/16" | 1 11/16" | 2 1/16" | 3 1/2" | 1/2" | 1" | 7/16" |
|
$11.84
|
| NUB0052 | 1 1/2" | 3/8" | 4" | 2 1/2" | 1 7/8" | 2" | 2 3/8" | 4" | 1/2" | 1" | 7/16" |
|
$11.84
|
| NUB0009 | 2" | 3/8" | 4 1/2" | 2 1/2" | 2 5/16" | 2 7/16" | 2 13/16" | 4 1/2" | 1/2" | 1" | 7/16" |
|
$12.22
|
| NUB0017 | 2 1/2" | 1/2" | 5 1/4" | 3" | 2 13/16" | 2 15/16" | 3 7/16" | 5" | 5/8" | 1" | 7/16" |
|
$15.99
|
| NUB0010 | 2 1/2" | 3/8" | 5 1/4" | 3" | 2 13/16" | 2 15/16" | 3 5/16" | 4 1/2" | 1/2" | 1" | 7/16" |
|
$15.99
|
| NUB0057 | 3" | 1/2" | 5 13/16" | 3" | 3 7/16" | 3 9/16" | 4 1/16" | 6" | 5/8" | 1" | 7/16" |
|
$15.72
|
| NUB0060 | 4" | 1/2" | 6 13/16" | 3" | 4 7/16" | 4 9/16" | 5 1/16" | 7" | 5/8" | 1" | 7/16" |
|
$17.20
|
| NUB0063 | 5" | 1/2" | 7 13/16" | 3" | 5 1/2" | 5 5/8" | 6 1/8" | 8" | 5/8" | 1" | 7/16" |
|
$24.60
|
| NUB0064 | 6" | 5/8" | 9 1/2" | 3 3/4" | 6 5/8" | 6 3/4" | 7 3/8" | 9" | 11/16" | 1" | 7/16" |
|
$27.24
|
| NUB0077 | 8" | 5/8" | 11 1/2" | 3 3/4" | 8 5/8" | 8 3/4" | 9 3/8" | 11" | 11/16" | 1" | 7/16" |
|
$30.74
|
| NUB0003 | 10" | 3/4" | 13 13/16" | 4" | 10 3/4" | 10 7/8" | 11 5/8" | 13 1/2" | 7/8" | 1 1/2" | 11/16" |
|
$47.20
|
| NUB0085 | 12" | 7/8" | 16 1/16" | 4 1/8" | 12 3/4" | 12 7/8" | 13 3/4" | 16" | 1" | 1 1/2" | 11/16" |
|
$60.25
|
| NUB0091 | 14" | 7/8" | 17 5/16" | 4 1/8" | 14" | 14 1/8" | 15" | 17" | 1" | 1 1/2" | 11/16" |
|
$65.83
|
| NUB0005 | 16" | 7/8" | 19 5/16" | 4 1/8" | 16" | 16 1/8" | 17" | 19" | 1" | 1 1/2" | 11/16" |
|
$82.85
|
| NUB0098 | 18" | 1" | 21 11/16" | 4 3/4" | 18" | 18 1/8" | 19 1/8" | 21 1/2" | 1 1/8" | 1 1/2" | 11/16" |
|
$96.85
|
| NUB0101 | 20" | 1" | 23 11/16" | 4 3/4" | 20" | 20 1/8" | 21 1/8" | 23 1/2" | 1 1/8" | 1 1/2" | 11/16" |
|
$115.57
|
| NUB0011 | 24" | 1" | 27 11/16" | 4 3/4" | 24" | 24 1/8" | 25 1/8" | 27 1/2" | 1 1/8" | 1 1/2" | 11/16 |
|
$153.28
|
| NUB0106 | 28" | 1" | 31 11/16" | 4 3/4" | 28" | 28 1/8" | 29 1/8" | 31 1/2" | 1 1/8" | 1 1/2" | 11/16" |
|
$217.64
|
| NUB0107 | 30" | 1" | 33 11/16" | 4 3/4" | 30" | 30 1/8" | 31 1/8" | 33 1/2" | 1 1/8" | 1 1/2" | 11/16" |
|
$174.58
|
| NUB0109 | 36" | 1" | 39 11/16" | 4 3/4" | 36" | 36 1/8" | 37 1/8" | 39 1/2" | 1 1/8" | 1 1/2" | 11/16" |
|
$204.66
|
